PS26A

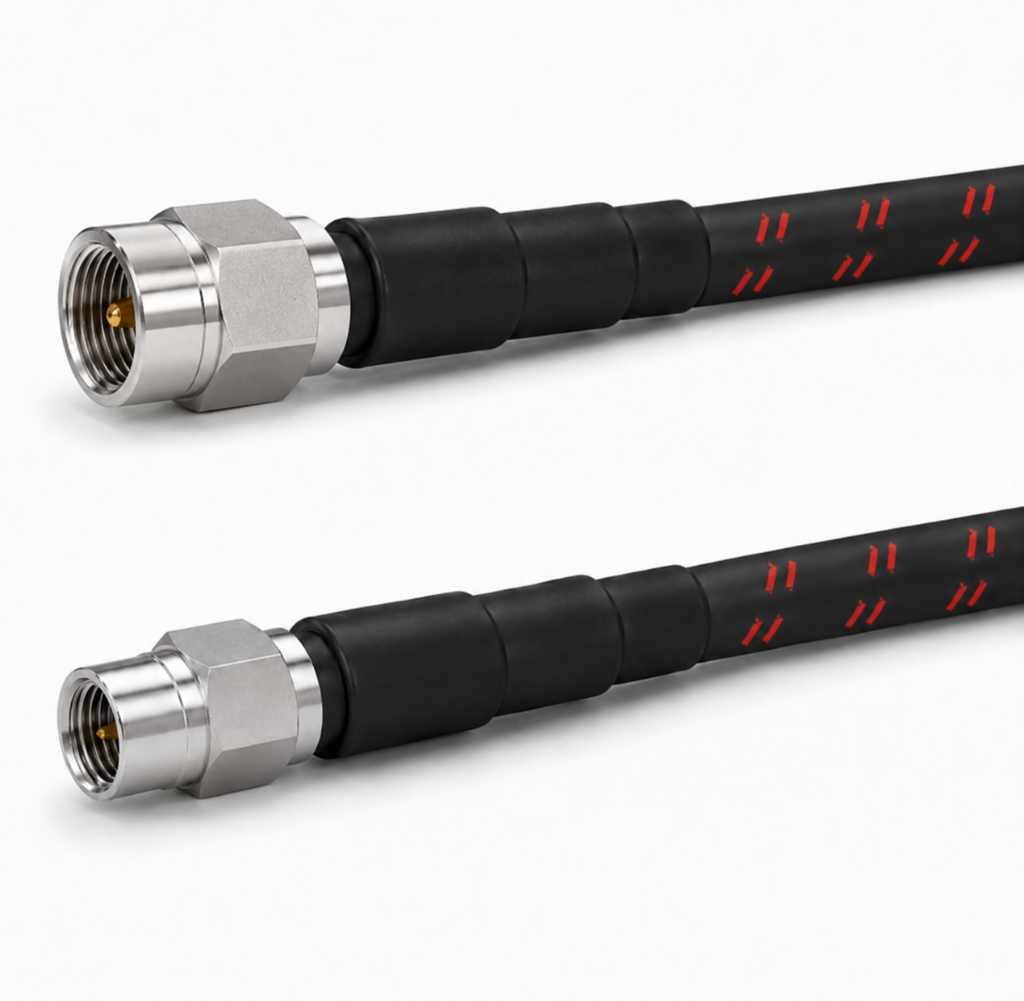

PS26A is an armoured, phase-stable RF test assembly for applications up to 26.5 GHz. Its stainless-steel armour provides mechanical protection for repeated handling on laboratory and production-test benches.
The assembly has a 39 mm static bend radius and a 78 mm repeated bend radius, with operation specified from −55°C to +105°C. Phase change under flexure is specified at ±5° under the stated test conditions.
Available as completed assemblies only.
Specifications
Frequency RangeDC to 26.5 GHz
Impedance50 Ω
Typical Attenuation (26.5 GHz)1.25 dB/m
Maximum VSWR (connector dependent)1.25 – 1.3
Phase Stability (360° at 78 mm, 26.5 GHz)±5°
Operating Temperature-55°C to +105°C
Minimum Bend Radius (Static)39 mm
Minimum Bend Radius (Repeated)78 mm
ArmourCrush & cut resistant
Completed assembly frequency and VSWR depend on the selected connector interfaces. Refer to the datasheet for configuration limits.
Typical Applications
- Laboratory test benches
- Production testing
- Equipment development
- Field-service testing
- Electronic warfare and signal-intelligence testing
Specify connector interfaces, assembly length and application requirements. Our engineering team will review the configuration and prepare a quotation.
